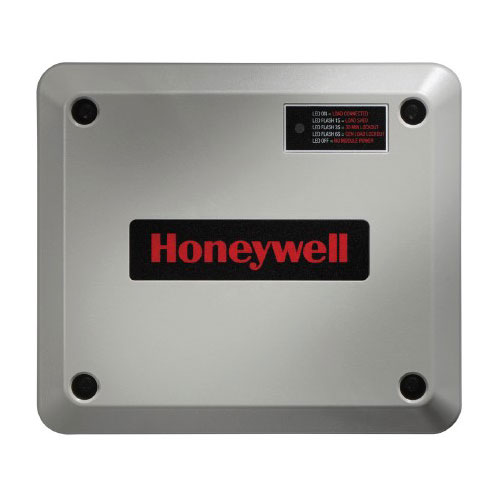

Honeywell Smart Management Module (SMM) For Standby Generators - 7001
Honeywell Smart Power Management System
An SMM is designed to optimize the performance of a standby generator. The system can consist of up to eight individual Smart Management Modules. Unlike other load management systems that depend on another control device, the SSM modules are actually self aware and operate autonomously.
Frequency Monitoring
Frequency is the true measure of generator engine performance and does not need to factor in increased ambient temperatures, elevation changes or generator fuel type. The modules monitor the frequency (Hz) of the power produced by Honeywell Standby Generators. If frequency falls below a certain threshold, the module automatically follows a power management algorithm to ensure the generator is not overloaded.
Load Priority Setting
Modules can be set to a load priority between 1-8 or set in a lock-out only mode for loads that simply do not need to run in an outage. This reduces the minimum size of the generator for a more cost-effective solution.
- 240 VAC Power Supply Source (from line input)
- 220//240 VAC Contact Voltages
- 240 VAC Contractor Coil Voltage
- 30 VA Coil Inrush
- 30 VA Coil Sealed
- 2 Poles
- 50 Resistive Amps
- 40 F/L Inductive Amps
- 180 Locked Rotor Amps
- 3R NEMA Rating
- UL50 Enclosure Rating
- 50 Hz / 60 Hz Frequency Select
If you are interested in ordering a large quantity of items you may qualify for volume pricing discounts. Volume Discount Pricing is a great way for customers to save big on large, bulk orders of most items available in our store. Please send a bulk order request to our friendly sales staff so they may create a quote and provide personal service for your order! You will receive a response within 1-2 business days and our office hours are Monday through Friday, 8am-5pm CST.
- Let us know what products & the quantities you are interested in.
- Get a detailed quote from a dedicated sales rep.
- Our warehouse ships directly to you.
- You enjoy the savings & are now a preferred customer.
Honeywell Smart Management Module SMM for Standby Generators Reviews
John B
October 28, 2022Honeywell modules
These modules work GREAT.
