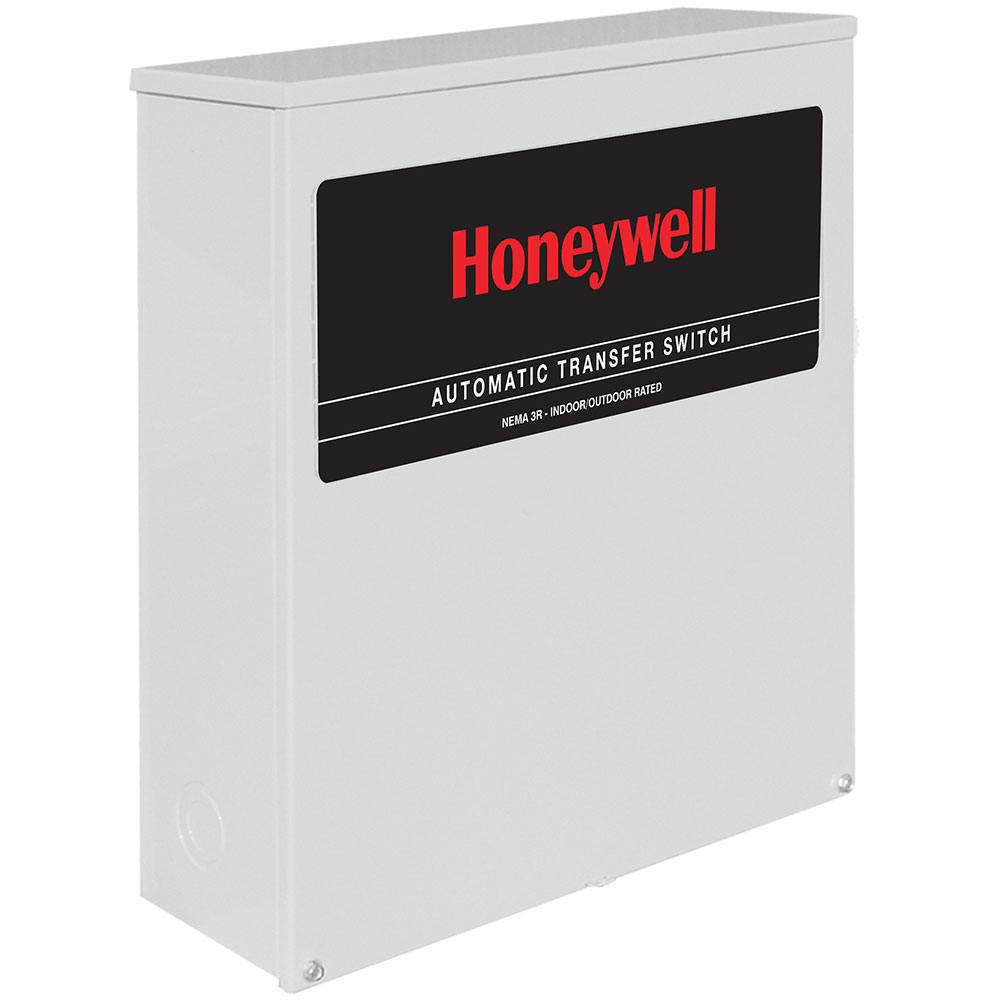

Honeywell RTSE100A3CSAH 100 Amp 120/240 Transfer Switch
Availability:
Sorry, this item has been DISCONTINUED.
- These switches use patent pending technology to allow for use in whole house applications in Canada
- The switches employ CUL rated circuit breakers on the utility side of the transfer contactor for full downstream protection. The aluminum enclosure is rated for NEMA/UL Type 3R installation and is fully protected from the elements
- Housed in an aluminum NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint. The heavy duty Generac Contactor is a UL recognized device, designed for years of service. The control at the generator handles all the timing, sensing and exercising functions
- Rated for all classes of load, 100% equipment rated, both inductive and resistive
- NEMA 3R (indoor/outdoor rated) aluminum enclosure is standard
- Main contacts are silver plated or silver alloy to resist welding and sticking
- Electrically operated, mechanically-held contacts for fast, positive connections
- Dual coil design
- 2 pole, 250 VAC contactor
- 160 millisecond transfer time
The Honeywell RTSE100A3CSAH Transfer Switch employs CUL rated circuit breakers on the utility side of the transfer contactor for full downstream protection. The aluminum enclosure is rated for NEMA/UL Type 3R installation and is fully protected from the elements. Housed in an aluminum NEMA/UL Type 3R enclosure, the heavy duty Generac Contactor is a UL recognized device that's designed for years of service. The control at the generator handles all the timing, sensing and exercising functions. This transfer switch is electrically operated and allows for swift and positive connections (160 millisecond transfer time). Rated for all classes of load and 100% equipment rated, this Honeywell Transfer Switch is both inductive and resistive. The Honeywell RTSE100A3CSAH Transfer Switch features a dual coal design with main contacts that are silver plated or silver alloy to resist welding and sticking.
Check out the dealer locator tool here https://www.honeywellgenerators.com/find-a-dealer for help with your installation.
Product Specs
UPC:
696471612271
MPN:
RTSE100A3CSAH
